Long-lasting components, time-saving design.

Lifelong Build

All H2hOme® models come standard with stainless steel pump heads and non-ferrous components. This protects against corrosion, and ensures system readiness for decades to come.

Fast Installation

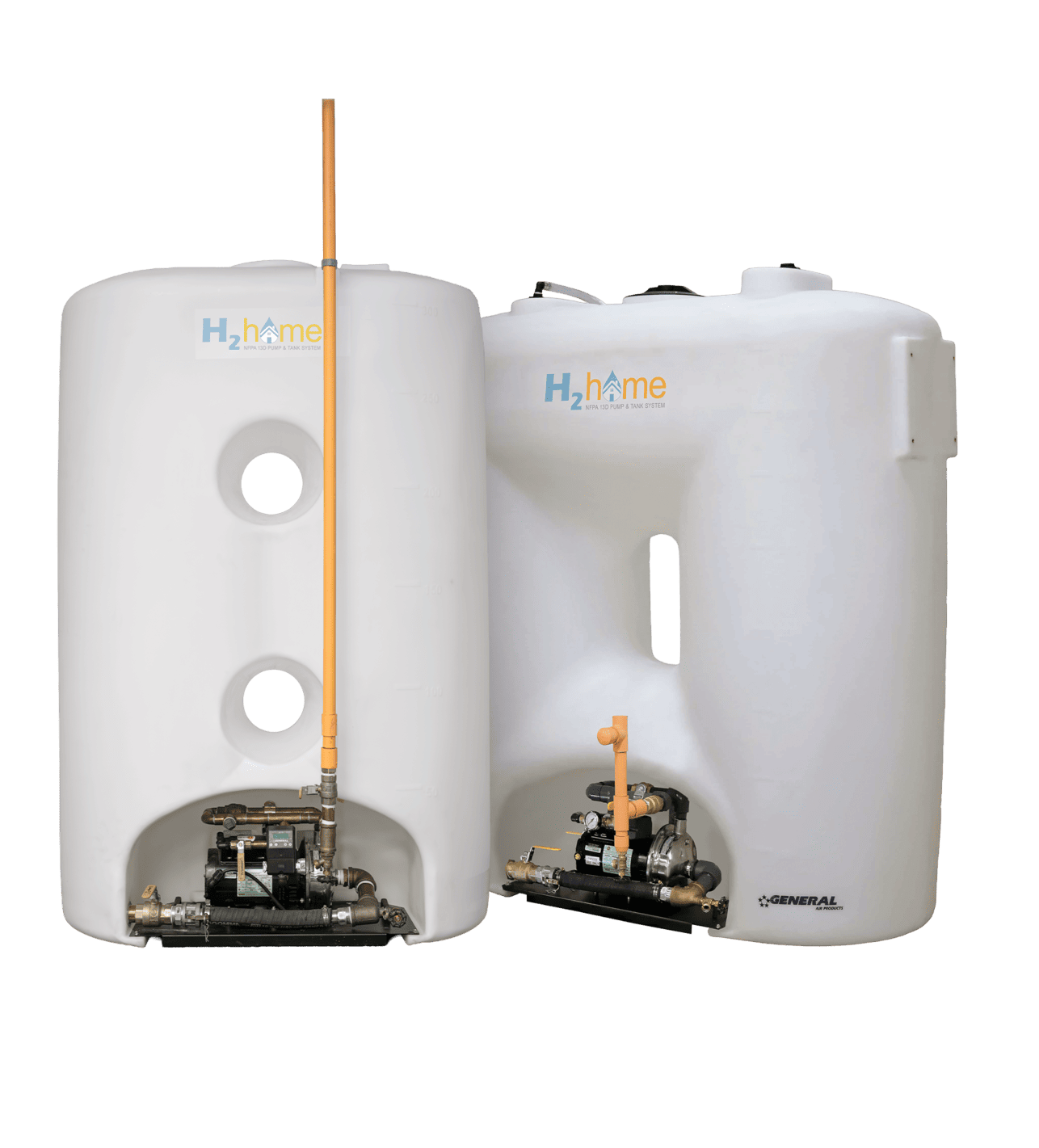

Created with home builders in mind, our slim tank can be carried through any standard sized doorway – with reduced weight when the pump is slid out.

Effortless Design

The only residential fire suppression system with an easy slide-out pump, which makes it easy to service, and easy to own.

Download Cut Sheet



Download IOM Manual



H2hOme® Model Specifications

MODEL GPM 0 20 25 30 35 40 50 60
H2H425-E01 PSI – 26 24 21 18 – – –
H2H425-E03 PSI – 48 45 39 34 – – –
H2H425-A04 PSI 64 57 55 52 49 46 39 33
H2H425-A06 PSI 75 68 65 63 60 58 51 45

NFPA 13D Code Compliant.

NFPA 13D 6.2.1 (2):

Pump motors using ac power shall be rated for 240 V
and wired in accordance with the NEC (NFPA 70).

NFPA 13D 6.2.1 (4):

The pump shall be located not less than 1 ½ in. off the floor.

NFPA 13D 6.2.2 (1):

The test connection shall return water to the tank.

NFPA 13D 6.2.2 (3):

A method for determining the water level in the tank
shall be provided without having to open the tank.

Small footprint,
perfect solution.

We made installation simple, because sprinkler fitting doesn’t need more complexities.

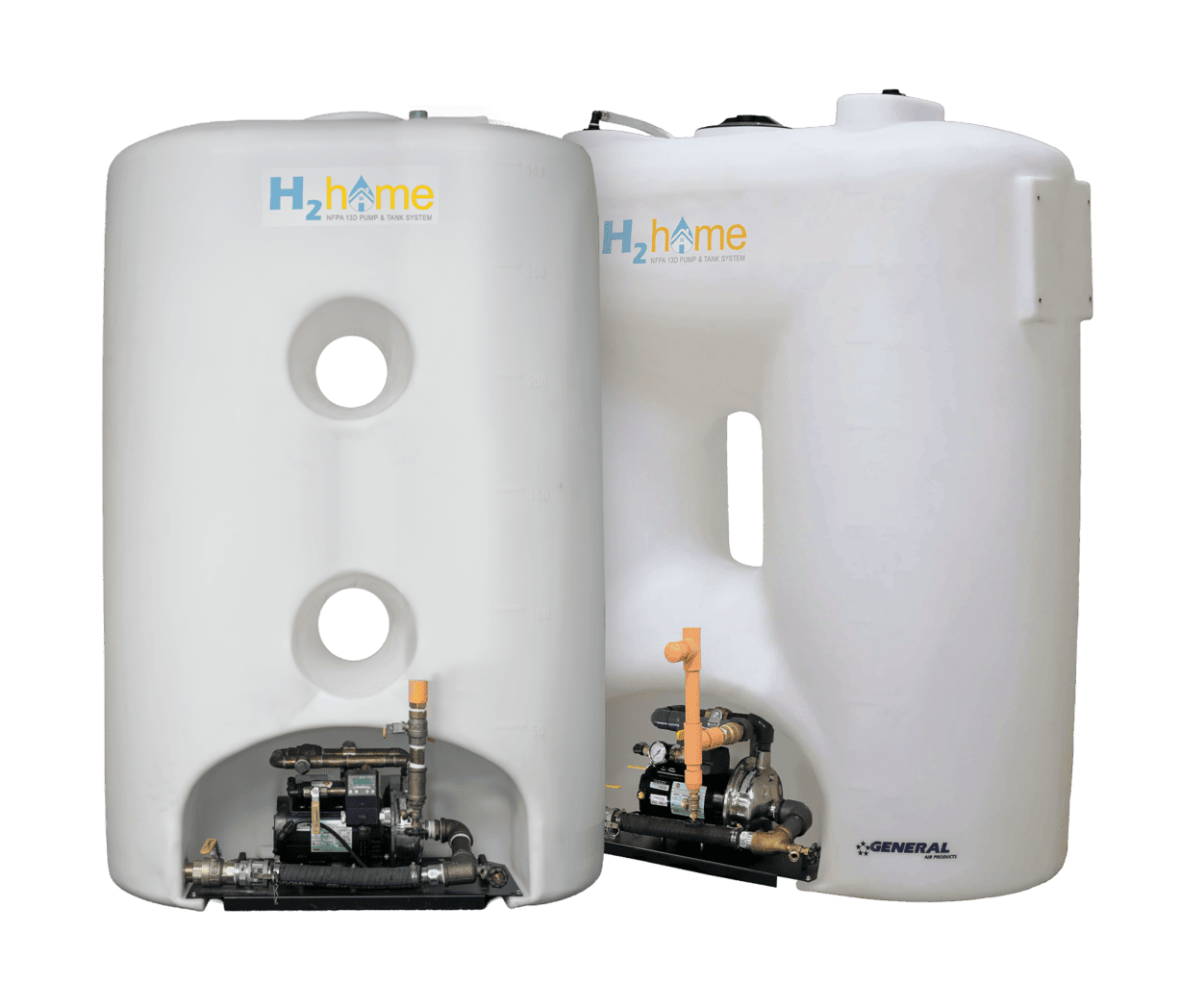

Our slim tanks are easily transported on-site, fit easily in small areas, and feature the exclusive ability to slide out the pump assembly for servicing or wiring.
